Combination Nozzles
Variable-pattern nozzles offering jet, fog and shut-off in a single unit. The standard attack nozzle for structural and industrial firefighting. EN 15182 certified.
AWG

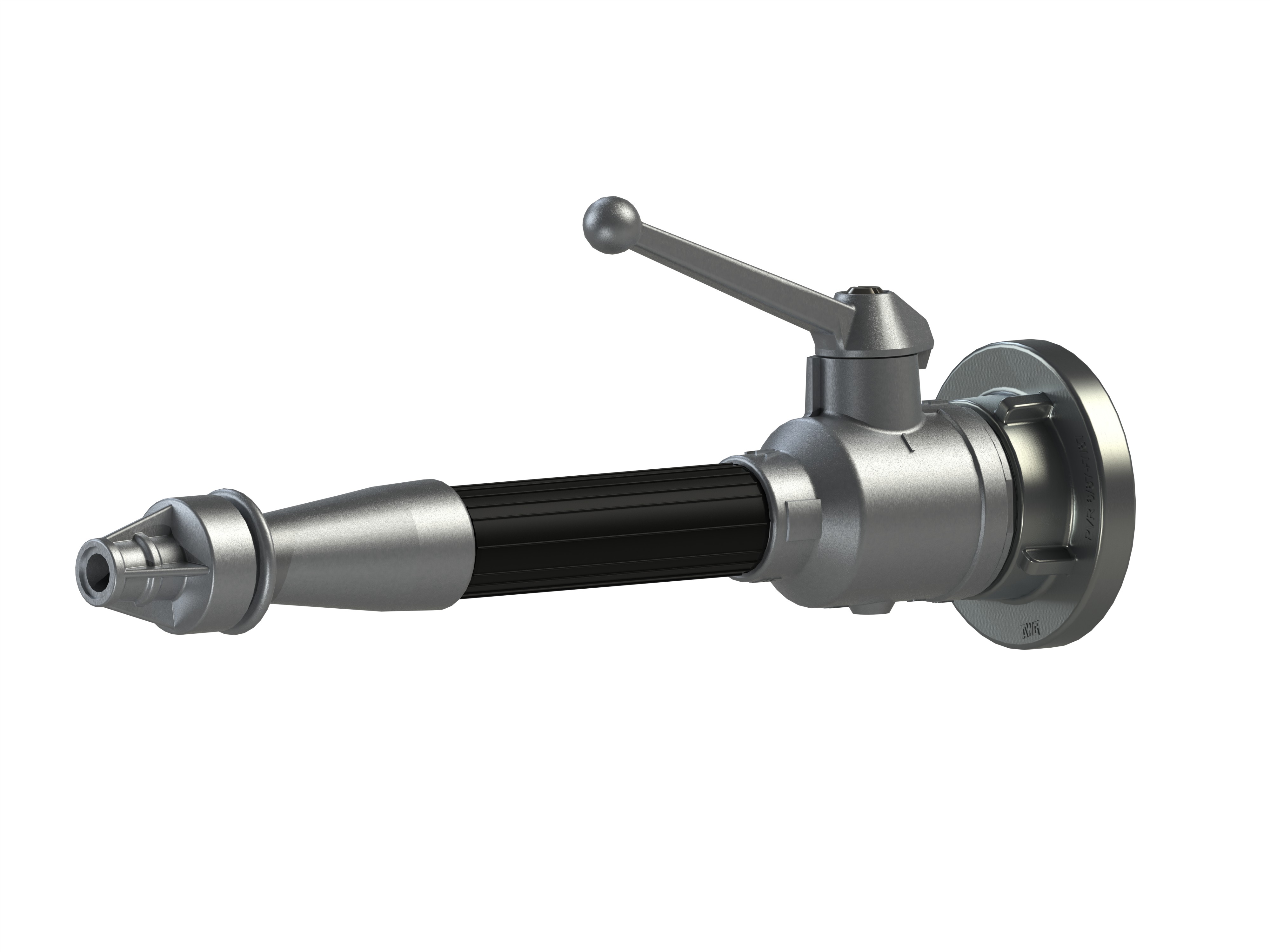

BM-DIN Combination Nozzle
Variable-pattern combination nozzle with DIN coupling — jet, fog, shut-off and flush mode
- Flow rate: 100–400 l/min
- Inlet coupling: DIN A / B / C
- Pressure: 3–7 bar
- Modes: jet, fog, shut-off, flush
- Certification: EN 15182
AWG

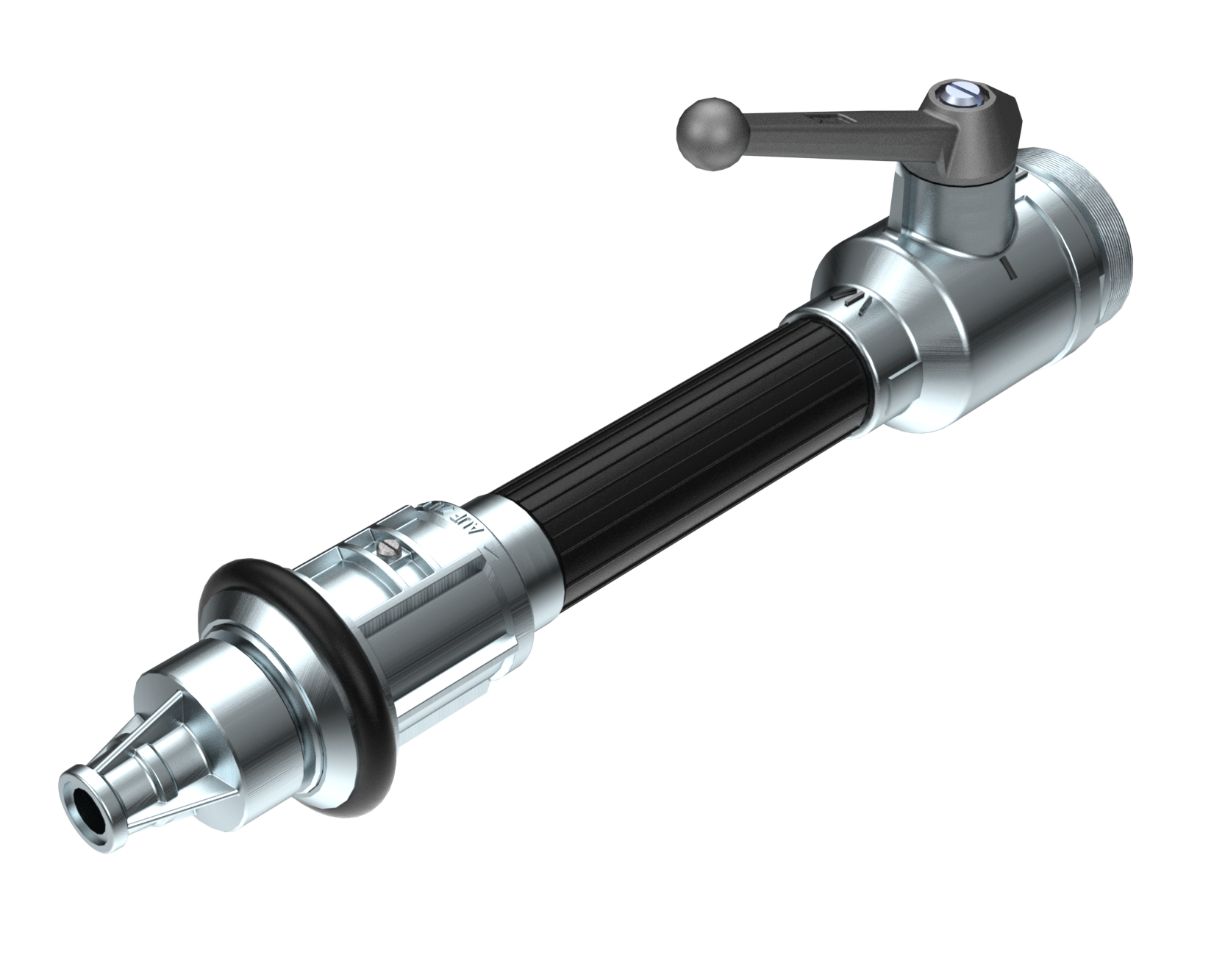

BMM-VSP Multi-purpose Nozzle
High-flow multi-purpose nozzle with extended fog protection — suited for industrial and petrochemical fire attack
- Flow rate: 200–800 l/min
- Inlet coupling: DIN A 75 or Storz 65
- Pressure: 5–10 bar
- Extended protective fog cone
- Certification: EN 15182
AWG

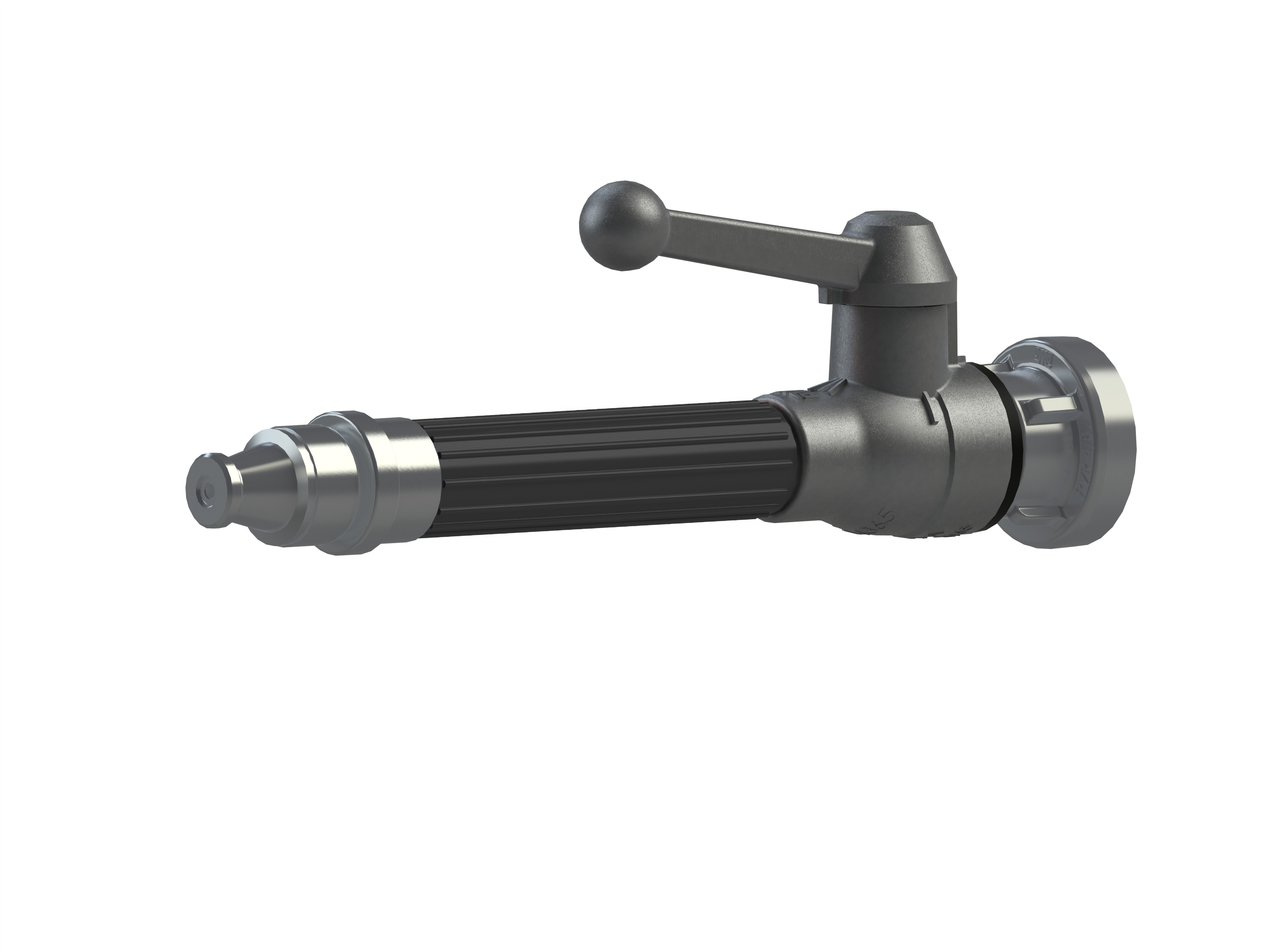

BM-65 Storz Combination Nozzle
Standard 65 mm Storz combination nozzle — the most common attack nozzle for European fire hose systems
- Flow rate: 100–500 l/min
- Inlet coupling: Storz 65 mm
- Pressure: 3–8 bar
- Modes: jet, wide fog, shut-off
- Certification: EN 15182
Monitors & Deck Guns
Fixed and portable monitors for high-flow industrial, airport and petrochemical fire protection. Flow rates from 1,000 to 8,000+ litres per minute.
AWG
Portable Monitor
Tripod-mounted portable monitor — rapid deployment for major incident water application
- Flow rate: 500–2,000 l/min
- Inlet: Storz 75 mm or 110 mm
- Elevation: −20° to +75°
- 360° rotation
- Tripod carry included
AWG

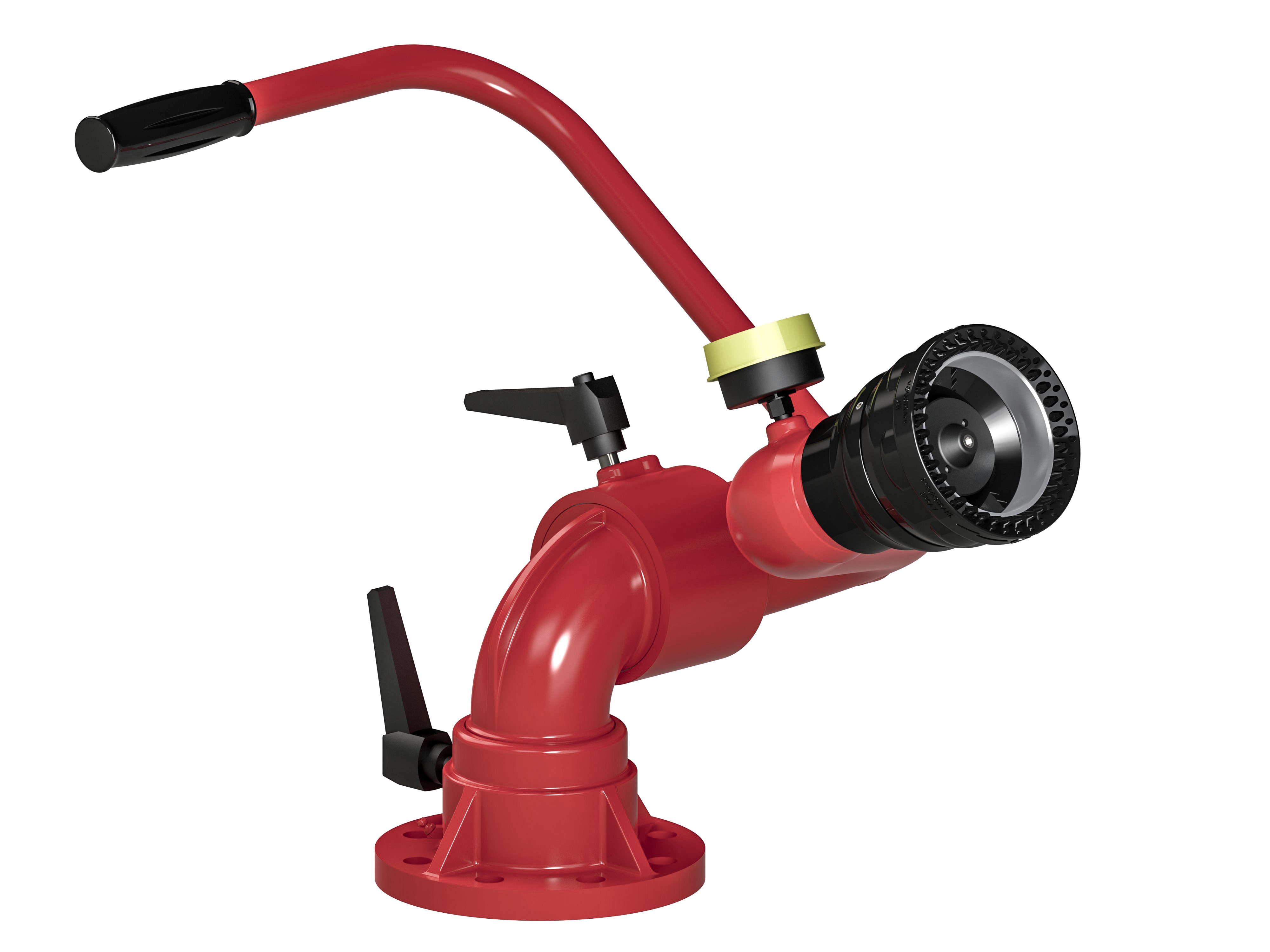

Fixed Monitor
Base-plate mounted fixed monitor for pump body, tender roof or fixed installation
- Flow rate: 1,000–4,000 l/min
- Inlet: 100 or 150 mm flanged
- Manual or remote-control option
- 316 stainless steel construction
- IP65 electrical components
AWG

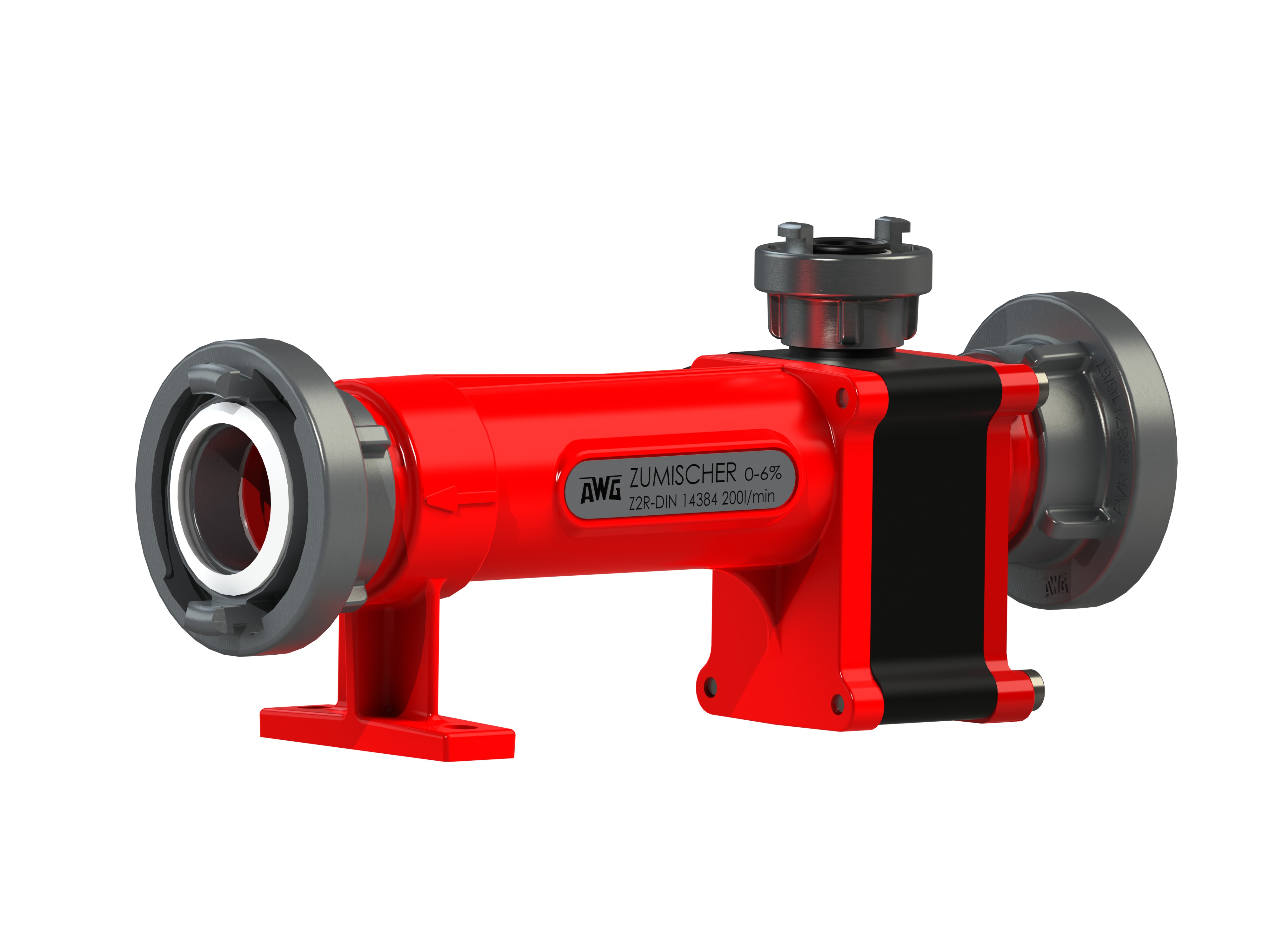

Foam Inductor (Inline Eductor)
Venturi-type foam inductor — 3% and 6% settings, compatible with all AWG nozzles and monitors
- Induction rate: 3% / 6% selectable
- Flow range: 200–1,000 l/min
- Inlet/outlet: Storz 65 or 75 mm
- No moving parts
- Compatible: AFFF, FFFP, CAFS foam concentrates
Branch Pipes, Valves & Fittings
AWG ball valves, dividing breeching, collecting heads, Storz couplings and hose reel fittings — available in DIN, Storz and BSP standards.
AWG

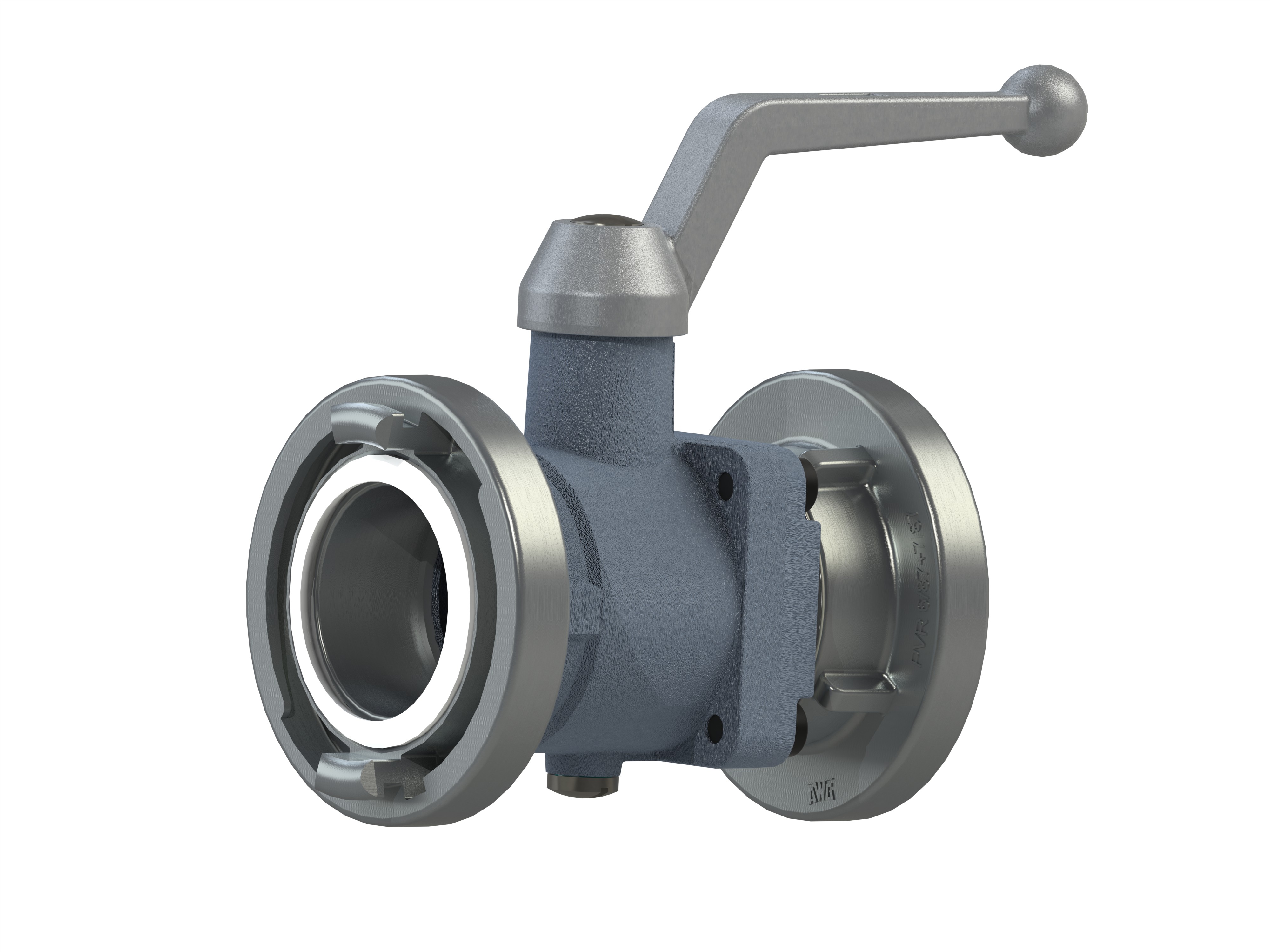

Ball Valve (Gate Valve)
Quarter-turn ball valve for hose line isolation — Storz or DIN coupling both ends
- Sizes: 38 mm / 52 mm / 65 mm / 75 mm
- Coupling: Storz or DIN
- Body: aluminium alloy
- Quarter-turn operation
- Working pressure: 16 bar
AWG

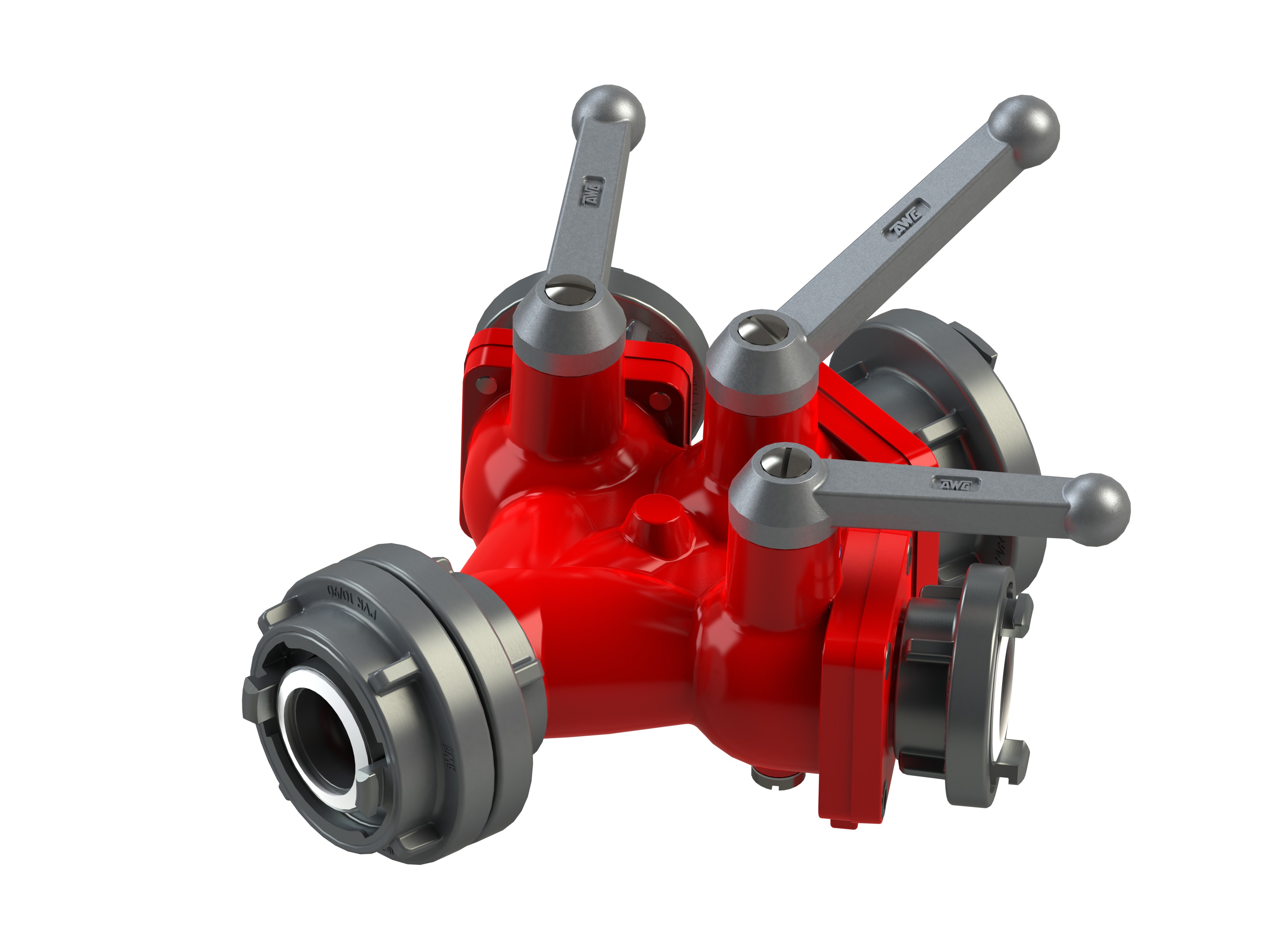

Dividing Breeching (Wye)
1-inlet / 2-outlet dividing breeching for splitting a single supply line into two attack lines
- Inlet: Storz 65 or 75 mm
- Outlets: 2× Storz 52 or 65 mm
- Separate gate valve per outlet
- Body: aluminium alloy
- Max. pressure: 16 bar
AWG
Collecting Head (Siamese)
2-inlet / 1-outlet collecting head for combining two supply lines into a single large outlet
- Inlets: 2× Storz 65 or 75 mm
- Outlet: Storz 75 or 110 mm
- Non-return valves per inlet
- Body: aluminium alloy
- Max. pressure: 16 bar
