The 1-bar bags stand out for their excellent lifting height and wide, even pressure distribution — ideal where you need to raise a large structure gently without concentrating load. Sold as complete 2-bag sets in 4 capacity ratings. Their anti-slip dimples maintain hold on wet, sandy or soft ground throughout the lift.
All 4 Sets — Specifications
| Set | Max Capacity (2 bags) | Max Lifting Height | Insertion Height | Set Weight | Product # |
|---|---|---|---|---|---|
| Set 1/6 | 6 t | 56 cm (22.1") | 22 mm (0.87") | 25 kg | 3110011500 |
| Set 1/9 | 9 t | 76 cm (29.9") | 22 mm (0.87") | 32 kg | 3110011400 |
| Set 1/13 | 13 t | 81 cm (31.9") | 22 mm (0.87") | 40 kg | 3110011300 |
| Set 1/23 | 23 t | — | 22 mm (0.87") | — | 3110011200 |
All sets: 1 bar (14.5 psi) operating pressure · EN 13204, CE marked · Each set includes 2 bags + complete filling accessories
Vetter

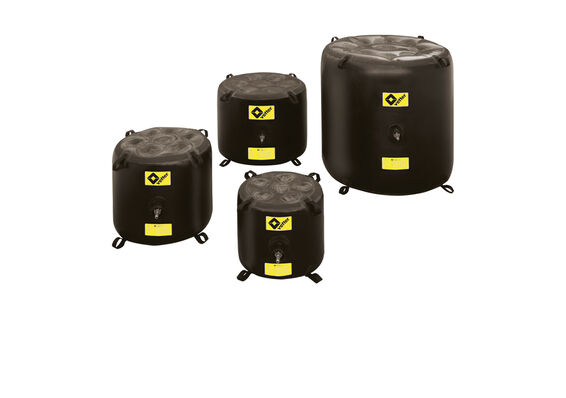

Classic 1-bar — Set 1/6
6 tonne capacity · 56 cm lifting height
- Capacity: 6 t
- Max height: 56 cm (22.1")
- Insertion height: 22 mm (0.87")
- Set weight: 25 kg
- Includes: 2 bags + full accessories
- Product #: 3110011500
Vetter
Classic 1-bar — Set 1/9
9 tonne capacity · 76 cm lifting height
- Capacity: 9 t
- Max height: 76 cm (29.9")
- Insertion height: 22 mm (0.87")
- Set weight: 32 kg
- Includes: 2 bags + full accessories
- Product #: 3110011400
Vetter
Classic 1-bar — Set 1/13
13 tonne capacity · 81 cm lifting height
- Capacity: 13 t
- Max height: 81 cm (31.9")
- Insertion height: 22 mm (0.87")
- Set weight: 40 kg
- Includes: 2 bags + full accessories
- Product #: 3110011300
Vetter
Classic 1-bar — Set 1/23
23 tonne capacity — maximum in the classic range
- Capacity: 23 t
- Insertion height: 22 mm (0.87")
- Pressure: 1 bar (14.5 psi)
- Includes: 2 bags + full accessories
- Product #: 3110011200
- Standard: EN 13204, CE marked
Standard Set Contents (all sets)
| Item | Specification | Qty |
|---|---|---|
| Vetter 1-bar lifting bags | Selected capacity | 2 |
| Inflation hose (red) | 1.0 bar, 5 m, quick-action coupling | 1 |
| Inflation hose (yellow) | 1.0 bar, 5 m, quick-action coupling | 1 |
| Air CU — 1-bar deadman with lighting | #0100005000 | 1 |
| Pressure regulator | 200/300 bar → 14 bar (#1600034000) | 1 |
| Repair material kit | 0.5 and 1.0 bar (#0100001000) | 1 |
| Valise carry case | #3110000100 | 1 |
Compatible with all Vetter 1-bar controllers, pressure regulators and hoses. Sets include everything needed for immediate deployment.
Classic 1-bar bags for your department?
We supply classic Vetter 1-bar bags individually and as complete sets. Contact us for specifications and pricing.
Request a Quote
