The S.Tec series is Vetter's next-generation high-pressure lifting bag. At 12 bar working pressure with only 2.5 cm insertion height, S.Tec bags deliver exceptional lifting force even in the most restricted access scenarios. Available in 14 sizes — from 1 tonne compact bags to 102 tonne heavy rescue bags — square and rectangular options.
All 14 Sizes — Complete Specifications
| Model | Dimensions (L×W) | Shape | Max Capacity | Max Height | Weight | Product # |
|---|---|---|---|---|---|---|
| V 1 | 130 × 140 mm | Square | 1.3 t | 7.4 cm | 0.5 kg | 1316000200 |
| V 5 | 200 × 255 mm | Square | 4.6 t | 12.1 cm | 1.3 kg | 1316000300 |
| V 7 | 280 × 280 mm | Square | 7.5 t | 15.8 cm | 2.0 kg | 1316000400 |
| V 10 | 320 × 320 mm | Square | 10.1 t | 17.8 cm | 2.6 kg | 1316000500 |
| V 12 | 350 × 350 mm | Square | 12.3 t | 19.5 cm | 3.0 kg | 1316000600 |
| V 20 | 440 × 440 mm | Square | 20.2 t | 24.5 cm | 4.8 kg | 1316000700 |
| V 26 | 520 × 470 mm | Square | 25.9 t | 27.0 cm | 6.2 kg | 1316003300 |
| V 33L | 1020 × 310 mm | Rectangular | 33.3 t | 19.3 cm | 8.0 kg | 1316000800 |
| V 35 | 620 × 520 mm | Square | 34.7 t | 29.9 cm | 8.2 kg | 1316000900 |
| V 40 | 610 × 610 mm | Square | 40.4 t | 33.6 cm | 9.3 kg | 1316003500 |
| V 50 | 676 × 676 mm | Square | 50.1 t | 37.5 cm | 11.9 kg | 1316001000 |
| V 59 | 690 × 780 mm | Rectangular | 59.4 t | 39.3 cm | 13.9 kg | 1316001100 |
| V 83 | 860 × 860 mm | Square | 82.7 t | 46.6 cm | 19.1 kg | 1316001200 |
| V 102 | 950 × 950 mm | Square | 101.6 t | 51.6 cm | 23.1 kg | 1316001300 |
All models: 12 bar (174 psi) operating pressure · 2.5 cm (0.98") insertion height · EN 13204 · CE marked · NW 7.2 quick-connect
Representative Models
- Sizes: V1, V5, V7, V10
- Capacity: 1.3 t to 10.1 t
- Dimensions: 130×140 mm to 320×320 mm
- Weight: 0.5 kg to 2.6 kg
- Pressure: 12 bar (174 psi)
- Standard: EN 13204, CE marked

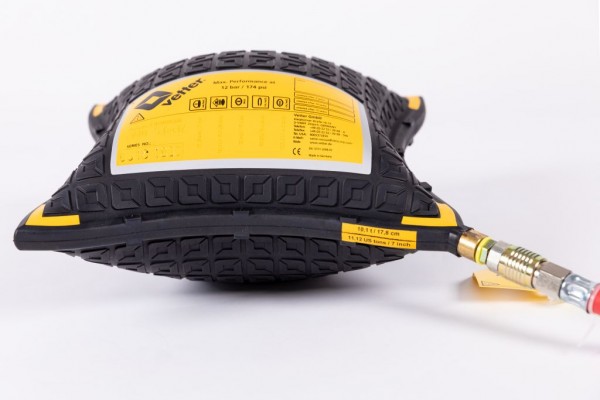

- Sizes: V12, V20, V26, V33L, V35, V40
- Capacity: 12.3 t to 40.4 t
- Dimensions: 350×350 mm to 610×610 mm (incl. rectangular V33L)
- Weight: 3.0 kg to 9.3 kg
- Pressure: 12 bar (174 psi)
- Standard: EN 13204, CE marked
- Sizes: V50, V59, V83, V102
- Capacity: 50.1 t to 101.6 t
- Dimensions: 676×676 mm to 950×950 mm (incl. rectangular V59)
- Weight: 11.9 kg to 23.1 kg
- Pressure: 12 bar (174 psi)
- Standard: EN 13204, CE marked
All S.Tec bags use the same NW 7.2 quick-connect system and are fully compatible with Vetter deadman controllers, pressure guards and pressure reducers. Controllers and accessories sold separately or as a complete set.
Need S.Tec bags for your rescue fleet?
We supply individual S.Tec bags and complete sets with controllers, hoses and carry cases. Contact us with your capacity requirements and we will recommend the right size combination.
