Mini bags are ideal when you need to reach into narrow gaps, split structural members or lift loads where a large flat contact area is required. The anti-slip surface profile ensures reliable performance on sand, grass, wet road or inclines. Available in 15 sizes — 8 bar operating pressure, from 1 tonne to 68 tonnes.
All 15 Sizes — Complete Specifications
| Model | Dimensions (L×W) | Shape | Max Capacity | Max Height | Weight | Product # |
|---|---|---|---|---|---|---|
| 1 t | 130 × 140 mm | Square | 1.0 t | 7.5 cm | 0.5 kg | 1314009300 |
| 3 t | 200 × 255 mm | Square | 3.3 t | 12.0 cm | 1.0 kg | 1314009500 |
| 5 t | 280 × 280 mm | Square | 5.7 t | 14.5 cm | 1.4 kg | 1314018200 |
| 6 t | 295 × 295 mm | Square | 6.4 t | 16.5 cm | 1.9 kg | 1314009600 |
| 10 t | 370 × 370 mm | Square | 9.6 t | 20.3 cm | 3.3 kg | 1314002200 |
| 12 t | 520 × 320 mm | Rectangular | 12.0 t | 20.0 cm | 3.9 kg | 1314002400 |
| 18 t | 520 × 470 mm | Square | 17.7 t | 27.0 cm | 5.7 kg | 1314002500 |
| 20 t | 580 × 480 mm | Square | 19.4 t | 28.0 cm | 6.2 kg | 1314011800 |
| 24 t | 620 × 520 mm | Square | 24.0 t | 30.6 cm | 7.2 kg | 1314002600 |
| 24L t | 1020 × 310 mm | Rectangular (Long) | 24.0 t | 20.1 cm | 6.8 kg | 1314002700 |
| 31 t | 690 × 650 mm | Square | 31.4 t | 37.0 cm | 10.1 kg | 1314002800 |
| 35L t | 1150 × 430 mm | Rectangular (Long) | 35.8 t | 31.0 cm | 10.0 kg | 1314018300 |
| 40 t | 690 × 780 mm | Rectangular | 39.6 t | 40.2 cm | 12.2 kg | 1314002900 |
| 54 t | 860 × 860 mm | Square | 54.4 t | 47.8 cm | 17.3 kg | 1314003000 |
| 68 t | 950 × 950 mm | Square | 67.7 t | 52.0 cm | 20.7 kg | 1314003100 |
All models: 8 bar (116 psi) operating pressure · EN 13204, CE marked · Special safety coupling · Anti-slip dimple surface profile
Vetter
Mini Bags 1–10 t — Compact Range
1 to 10 tonnes — tightest access rescue scenarios
- Models: 1t, 3t, 5t, 6t, 10t
- Max capacity: 1.0 t to 9.6 t
- Dimensions: 130×140 mm to 370×370 mm
- Weight: 0.5 kg to 3.3 kg
- Pressure: 8 bar (116 psi)
- Standard: EN 13204, CE marked
Vetter

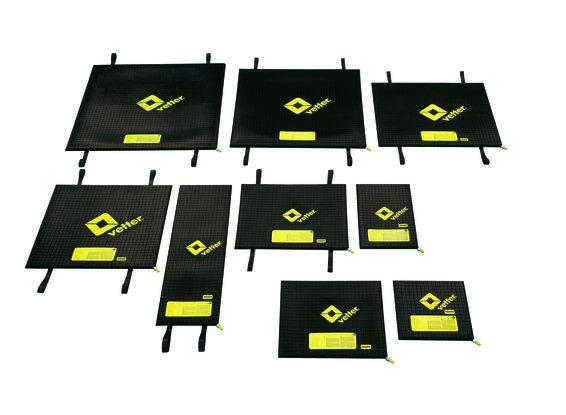

Mini Bags 12–31 t — Mid Range
12 to 31 tonnes — square and rectangular options
