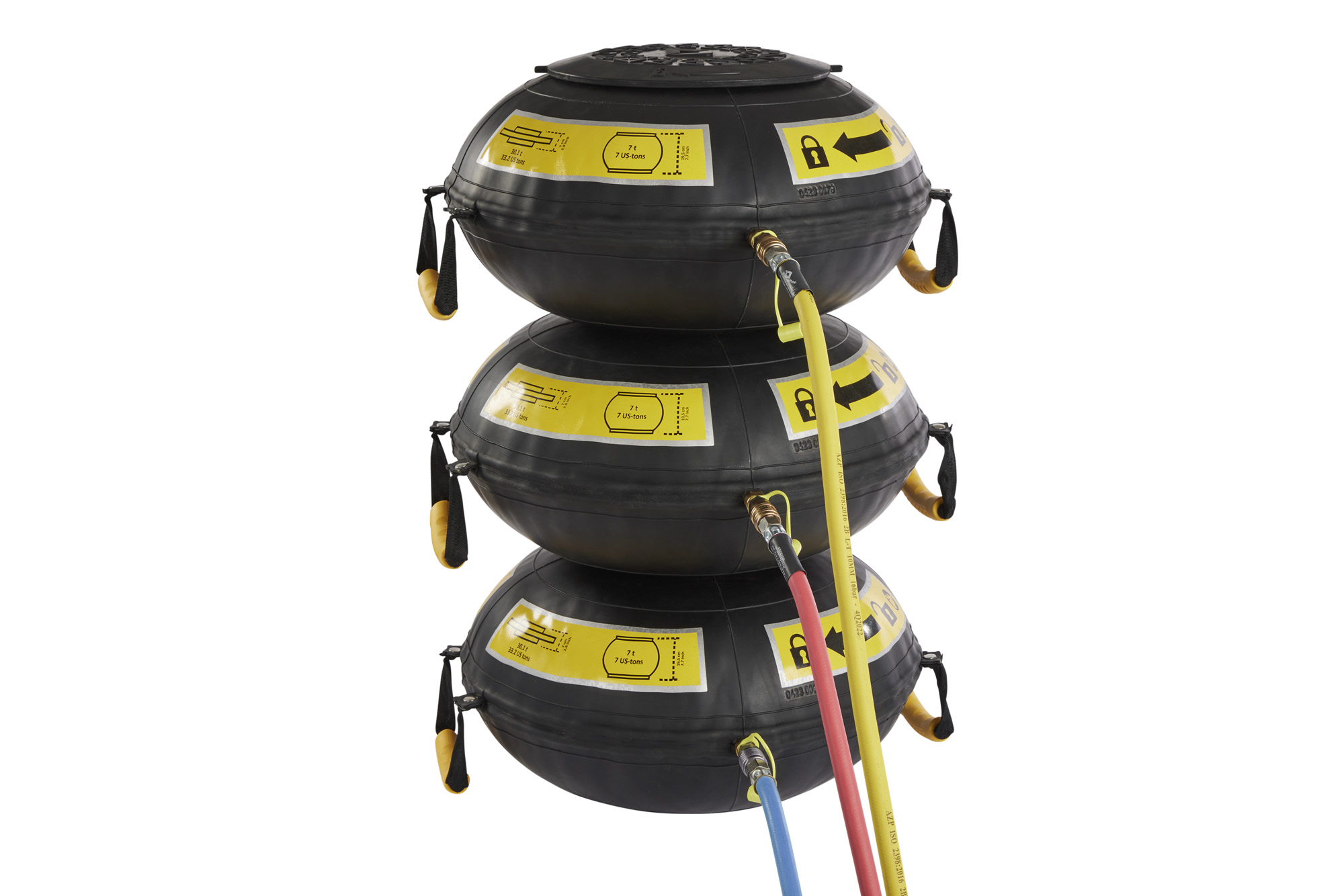

C-TEC uniquely combines the lifting power of mini bags with the lifting height of classic 1-bar bags — all at 12 bar working pressure. Cylindrical design, tool-free multi-bag connection, and integrated load plate. Available in 3 sizes: C-TEC 30, C-TEC 75, and C-TEC 172 (named for their peak starting lift capacity in tonnes).
All 3 Models — Complete Specifications
| Model | Diameter | Insertion Height | Max Start Capacity | Final Capacity (top of stroke) | Max Lifting Height | Weight | Product # |
|---|---|---|---|---|---|---|---|
| C-TEC 30 | 56.5 cm (22.2") | 2.7" (≈6.9 cm) | 30.1 t | 7 t | 27.5 cm (10.8") | 12 kg | 1316004600 |
| C-TEC 75 | 89 cm (35.0") | 2.7" (≈6.9 cm) | 74.7 t | 12 t | 43.5 cm (17.1") | 22.4 kg | 1316004700 |
| C-TEC 172 | 135 cm (53.2") | 4.53" (≈11.5 cm) | 171.8 t | 15 t | 69 cm (27.2") | 58 kg | 1316003900 |
All models: 12 bar (174 psi) · EN 13204, CE marked · Cylindrical shape · Integrated load plate · Tool-free connection
- Diameter: 56.5 cm (22.2")
- Max start capacity: 30.1 t
- Max lifting height: 27.5 cm (10.8")
- Final capacity: 7 t (at top of stroke)
- Weight: 12 kg
- Pressure: 12 bar (174 psi)
- Diameter: 89 cm (35.0")
- Max start capacity: 74.7 t
- Max lifting height: 43.5 cm (17.1")
- Final capacity: 12 t (at top of stroke)
- Weight: 22.4 kg
- Pressure: 12 bar (174 psi)
- Diameter: 135 cm (53.2")
- Max start capacity: 171.8 t
- Max lifting height: 69 cm (27.2")
- Final capacity: 15 t (at top of stroke)
- Weight: 58 kg
- Pressure: 12 bar (174 psi)
All C-TEC bags are compatible with Vetter controllers and standard compressed air sources including cylinders, compressors and vehicle air connections. Tool-free connection allows 2 or more bags to be ready for deployment in seconds.
Need C-TEC bags for your rescue team?
C-TEC is ideal for teams needing versatile high-pressure lifting with greater height capability. Contact us for demonstrations and pricing.
