Vetter Ultra Flat Bags — 8 bar

Only 1.6 cm (0.6 inch) insertion height — fits where nothing else will. 8 bar working pressure, very low air requirement, ready in seconds.

Vetter Feuerwehrtechnik GmbH — Germany

Vetter Ultra Flat Bags are the essential first-access tool at rescue sites where clearance is severely restricted. With just 1.6 cm insertion height at 8 bar working pressure, they create space for other rescue tools in seconds. EN 13204 certified.

Ultra Flat Bags are typically deployed as the first tool at a rescue scene — inserted to create initial clearance, then supplemented with S.Tec or C-TEC bags for main lifting. Extremely low air requirement means they are ready in seconds. Available in 4 sizes: UF 1, UF 3, UF 6, and UF 10.

All 4 Sizes — Complete Specifications

Model Dimensions (L×W) Insertion Height Max Capacity Max Lifting Height Weight Product #
UF 1130 × 140 mm1.6 cm (0.6")1.0 t7.5 cm (3.0")0.4 kg1314018801
UF 3200 × 255 mm1.6 cm (0.6")3.3 t12.0 cm (4.7")1.0 kg1314018701
UF 6295 × 295 mm1.6 cm (0.6")6.4 t16.5 cm (6.5")1.7 kg1314018601
UF 10370 × 370 mm1.6 cm (0.6")9.6 t20.3 cm (8.0")2.4 kg1314020701

All models: 8 bar (116 psi) operating pressure · 1.6 cm insertion height · EN 13204, CE marked

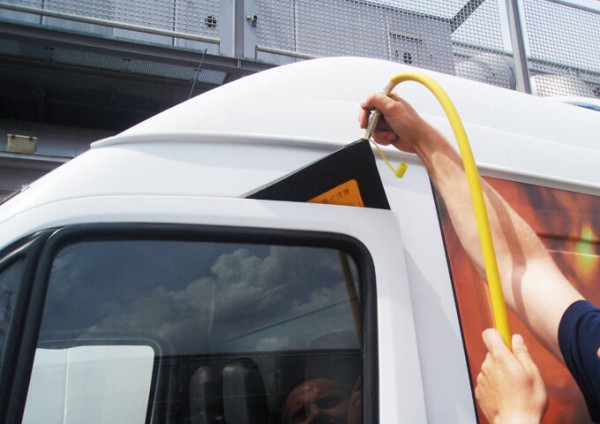

Vetter Ultra Flat UF 1 — 1 tonne 8 bar
Vetter
Ultra Flat UF 1 — 8 bar
1 tonne · 130×140 mm · 1.6 cm insertion height
  • Max capacity: 1.0 t
  • Dimensions: 130 × 140 mm
  • Max height: 7.5 cm
  • Weight: 0.4 kg
  • Pressure: 8 bar (116 psi)
  • Product #: 1314018801
Request a Quote
Vetter Ultra Flat UF 3 — 3 tonne 8 bar
Vetter
Ultra Flat UF 3 — 8 bar
3 tonnes · 200×255 mm · 1.6 cm insertion height
  • Max capacity: 3.3 t
  • Dimensions: 200 × 255 mm
  • Max height: 12.0 cm
  • Weight: 1.0 kg
  • Pressure: 8 bar (116 psi)
  • Product #: 1314018701
Request a Quote
Vetter Ultra Flat UF 6 — 6 tonne 8 bar
Vetter
Ultra Flat UF 6 — 8 bar
6 tonnes · 295×295 mm · 1.6 cm insertion height
  • Max capacity: 6.4 t
  • Dimensions: 295 × 295 mm
  • Max height: 16.5 cm
  • Weight: 1.7 kg
  • Pressure: 8 bar (116 psi)
  • Product #: 1314018601
Request a Quote
Vetter Ultra Flat UF 10 — 10 tonne 8 bar
Vetter
Ultra Flat UF 10 — 8 bar
10 tonnes · 370×370 mm · 1.6 cm insertion height
  • Max capacity: 9.6 t
  • Dimensions: 370 × 370 mm
  • Max height: 20.3 cm
  • Weight: 2.4 kg
  • Pressure: 8 bar (116 psi)
  • Product #: 1314020701
Request a Quote

Insertion Height Comparison

Bag TypeInsertion HeightPressurePrimary Use
Ultra Flat1.6 cm (0.6")8 barTightest-access first tool
S.Tec2.5 cm (0.98")12 barHigh-capacity rescue lifting
Mini Bags~2 cm8 barVersatile square/rectangular rescue
